Home > PRODUCTS > Cable Cutters >
A-325

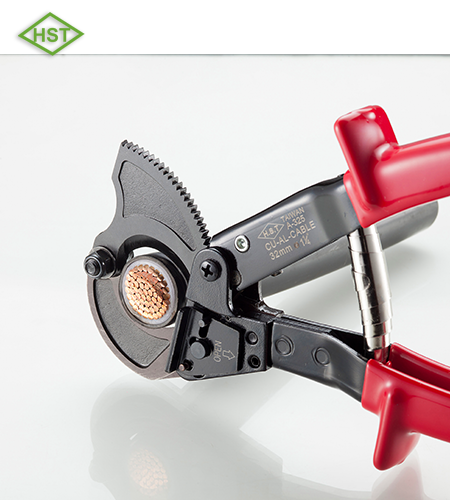

325mm2 Ratchet Cable Cutter
Feature:
Ratchet cable cutters are tools that use a ratchet mechanism to cut thick copper and aluminum cables in a effort-saving manner. They are mainly used in power installation, communication maintenance or repair.

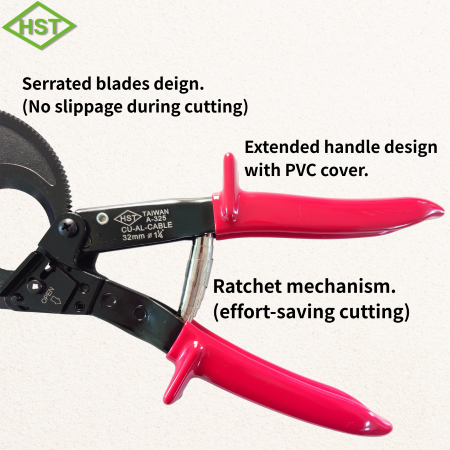

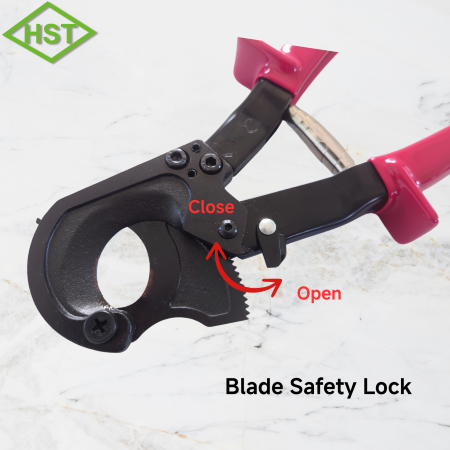

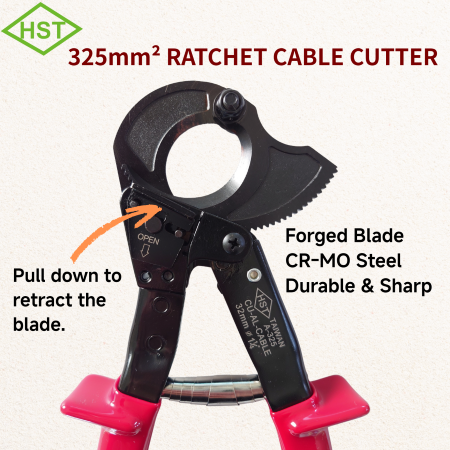

A-325 is made of CR-MO(SCM440) alloy steel, featuring a sharp and durable blade. When cutting with New Wealth forged blades, the cut surface can be smooth, preventing the cable deforming or splitting. Furthermore, the ratchet mechanism and extended handle design make cutting easier and effort-saving. A safety locking mechanism on the back is used to secure and retract the blade.
(❌ Not applicable to steel core, steel cable, steel wire)
◎ Material:
Head CR-MO SCM-440 (HRC 54-56).
Blade & body S55C (HRC62).
◎ Precision forged and heat-treated, five-axis making cut blades, durable and not easily broken.
◎ Cutting capacity:
Flexible Cable 325mm² (32mm diameter/ 600MCM).
Hard Cable 200mm² (23mm diameter/ 400MCM).

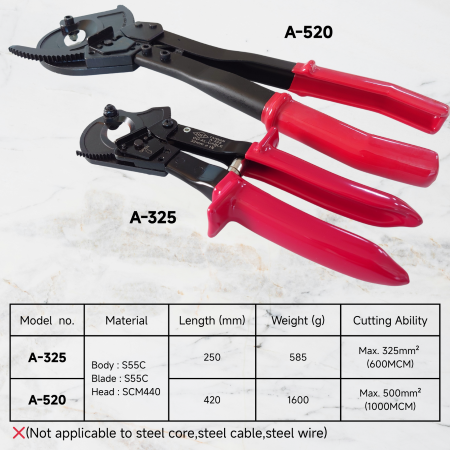

◎ Full series of Cable Cutters:
1.Ratchet type: A-325, A-520.
2.Heavy-duty type: A-240C, A-240B...
3.Portable type: A-184,A-184A,A-185,A-186,A-101S.
◎ Video ☛ Click to see how to use.
-
-
Model no.:
A-325
-
Full length:
250mm
-
Material:
Body：SCM440
Handle：PVC -
Hardness:
Head：HRC 54-56
Blade：HRC62 -
Packing:
1pcs / blister card
10pcs / inner box
30pcs / carton -
Weight:
N. weight : 20.6 kg
G. weight : 22.6 kg
Dimensional weight : 2.2 cuft -
Origin:
Taiwan
-
