Home > PRODUCTS > Combination Pliers >

A-101A

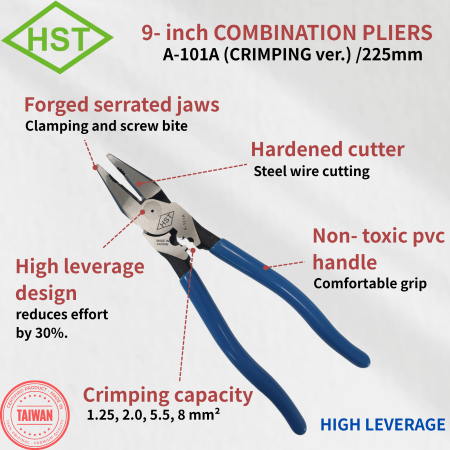

9" Combination Pliers

Over View

Inquire

Inquiry Cart

Inquiry Now

Feature:

Combination Pliers are also called Linesman Pliers, or commonly known as 老虎鉗 or ペンチ (片吉 in Taiwanese). They are a type of Hand Tools Pliers most commonly used by linemen and electricians. Almost every household will have one for DIYer. Mainly used for clamping, twisting, bending and cutting wires, cables and other metal parts.

◎ Precision forged and heat-treated using CR-MO (SCM440) or high-carbon (S55C) steel for superior strength and durability.

◎ Surface polished and black phosphate coating to enhance rust resistance.

◎ High leverage design (rivet closer to pliers head) to reduces effort by 30%.

◎ Cutting edges hardened by high-frequency treatment, reaching 60±2 HRC— ideal for cutting steel wires.

◎ Cutting capacity：iron wire ∅3.6mm, spring copper wire ∅2.5mm, electric wire ∅5.5mm.

◎ ROHS-compliant, non-toxic PVC handles with ergonomic design for a comfortable grip.

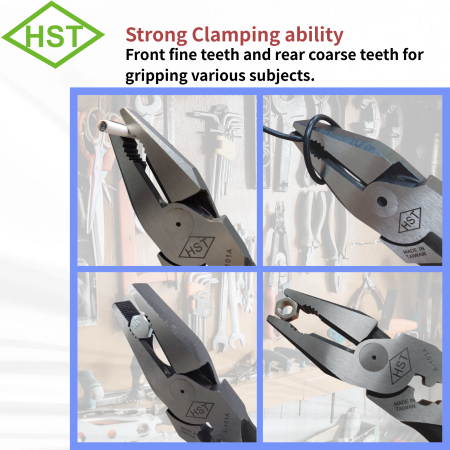

◎ Fine teeth at the front and coarse teeth at the rear of the jaws, optimized for gripping various materials.

◎ Crimping capacity：1.25,2.0,5.5,8mm²

◎ Made in Taiwan. Quality assurance hand tools.

◎ Combination pliers (9-inch) series：A-101, A-101A, A-101B, A-101C, A-101D, A-101E.

◎ Video ☛ Click to see how to use

- Model no.:

  A-101A
- Full length:

  225mm
- Material:

  Body: SCM440 CR-MO or S55C high carbon steel.
  Handle: PVC
- Hardness:

  Cutting edge: 60±2 HRC
  Body: 45±2 HRC
- Cutting ability:

  Iron wire ∅3.6mm
  Electric wire ∅5.5mm
  steel wire ∅2.5mm

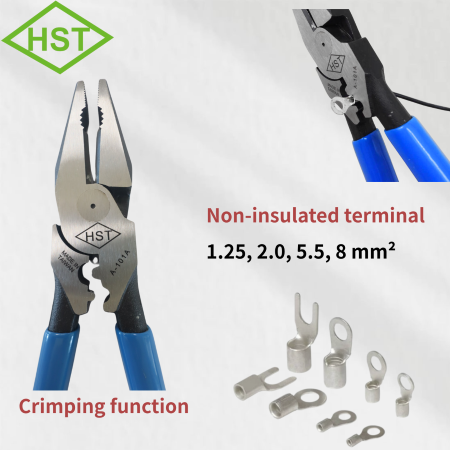

- Crimping capacity:

  Non-insulated terminal
  1.25, 2.0, 5.5, 8 mm²
- Packing:

  1 pcs/ blister card
  6 pcs/ inner box
  60 pcs(10boxes)/ carton
- Weight:

  N. weight : 25 kg
  G. weight : 27 kg
  Dimensional weight : 1.5 cuft
- Origin:

  Taiwan
