Home > PRODUCTS > Combination Pliers >
A-101B

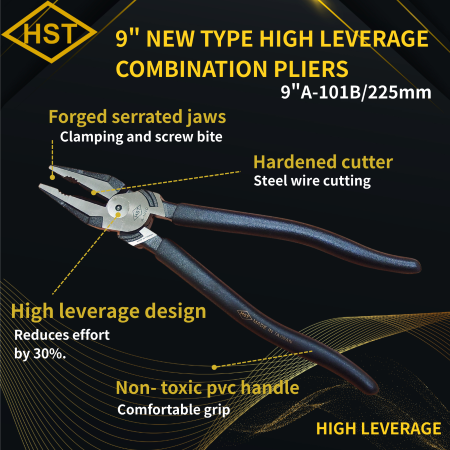

9" New Type High Leverage Combination Pliers
Feature:
Combination Pliers are also called Linesman Pliers, or commonly known as 老虎鉗 or ペンチ (片吉 in Taiwanese). They are a type of Hand Tools Pliers most commonly used by linemen and electricians. Almost every household will have one for DIYer. Mainly used for clamping, twisting, bending and cutting wires, cables and other metal parts.

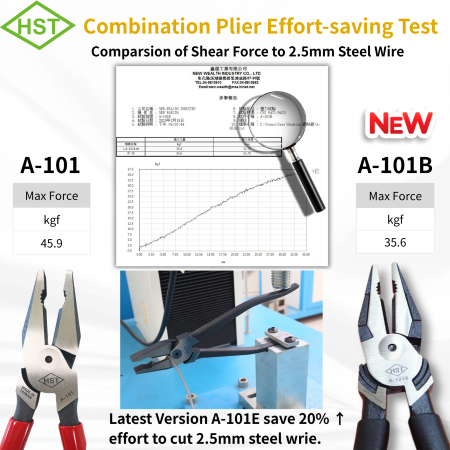

A-101B is latest type of combination plier develop by New Wealth (HST) development team, is lighter around 5-10% compared to the original A-101. A-101B also features high leverage design (rivet closer to pliers head), reduces effort by 20% more than old type, making steel wire cutting easier. This enhances technician convenience, allowing technicians to finish cutting, clamping and unscrewing with a single tool New Wealth A-101B.

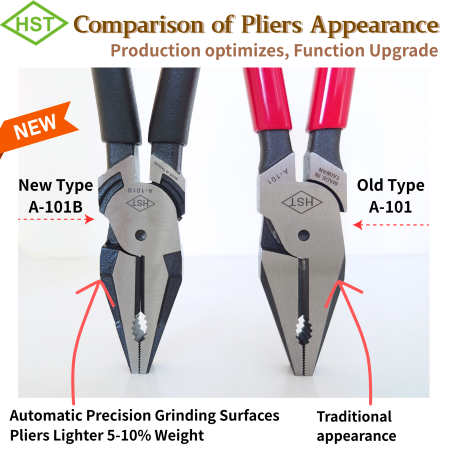

◎ Lighter around 5-10% compared to the original A-101.
◎ High leverage design (rivet closer to pliers head) to reduces effort.
◎ Precision forged and heat-treated using CR-MO (SCM440) or high-carbon (S55C) steel for superior strength and durability.
◎ Surface polished and black phosphate coating to enhance rust resistance.
◎ Cutting edges hardened by high-frequency treatment, reaching 60±2 HRC— ideal for cutting steel wires.
◎ Cutting capacity：iron wire ∅3.6mm, spring copper wire ∅2.5mm, electric wire ∅5.5mm.
◎ ROHS-compliant, non-toxic PVC handles with ergonomic design for a comfortable grip.
◎ Fine teeth at the front and coarse teeth at the rear of the jaws, optimized for gripping various materials.
◎ Made in Taiwan. Quality assurance hand tools.
◎ Combination pliers (9-inch) series：
A-101 (1.0 combination plier)
A-101A (1.0 combination plier + cirmping)
A-101B (2.0 combination plier)
A-101C (2.0 combination plier + cirmping)
A-101D (2.0 combination plier + screwing)
A-101E (2.0 combination plier + screwing + crimping
◎ Video ☛ Click to see how to use
-
-
Model no.:
A-101B
-
Full length:
225mm
-
Material:
Body: SCM440 CR-MO or S55C high carbon steel.
Handle: PVC -
Hardness:
Cutting edge: 60±2 HRC
Body: 45±2 HRC -
Cutting ability:
Iron wire ∅3.6mm
Electric wire ∅5.5mm
steel wire ∅2.5mm -
Packing:
1 pcs/ blister card
6 pcs/ inner box
60 pcs(10boxes)/ carton -
Weight:
N. weight : 25 kg
G. weight : 27 kg
Dimensional weight : 1.5 cuf -
Origin:
Taiwan
-
